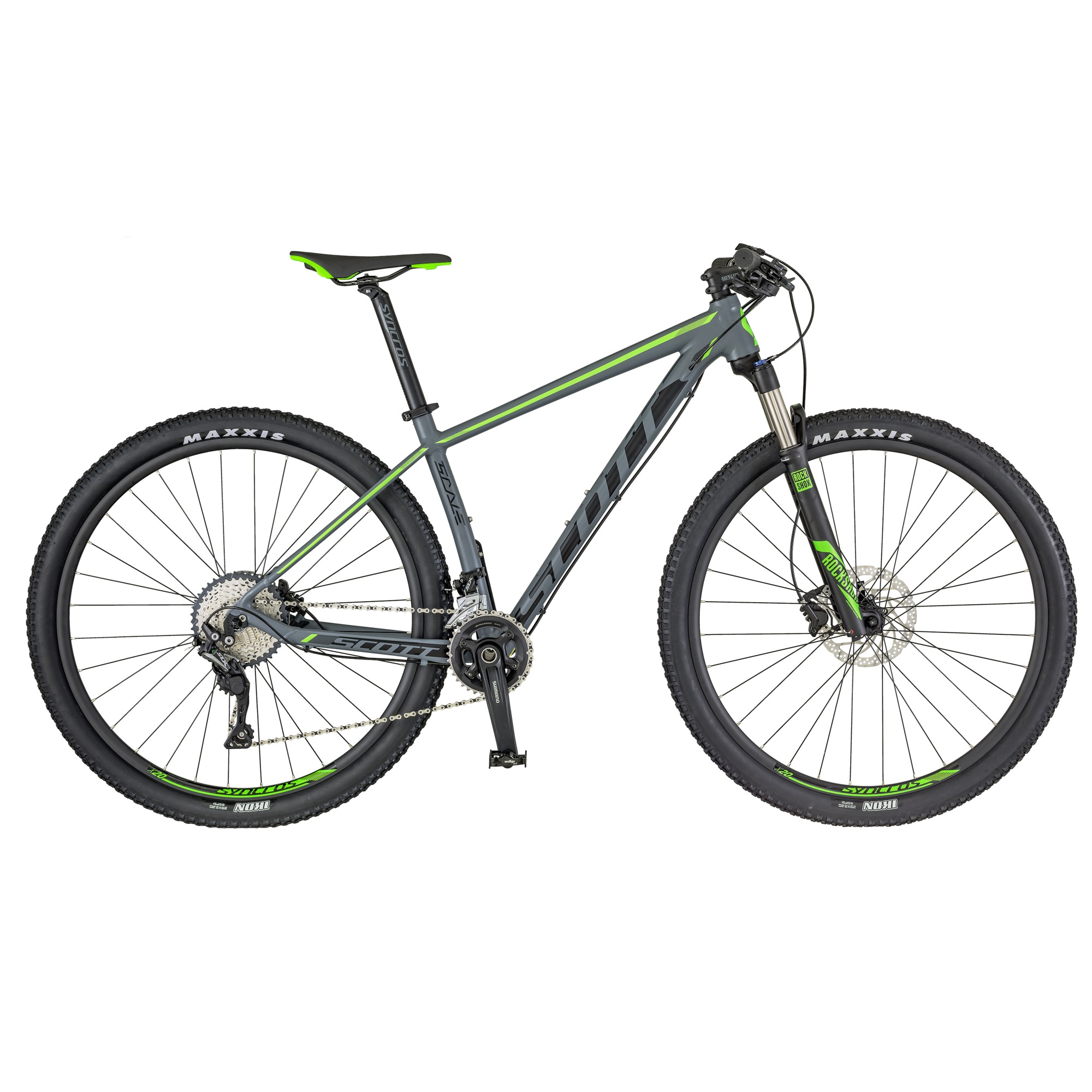

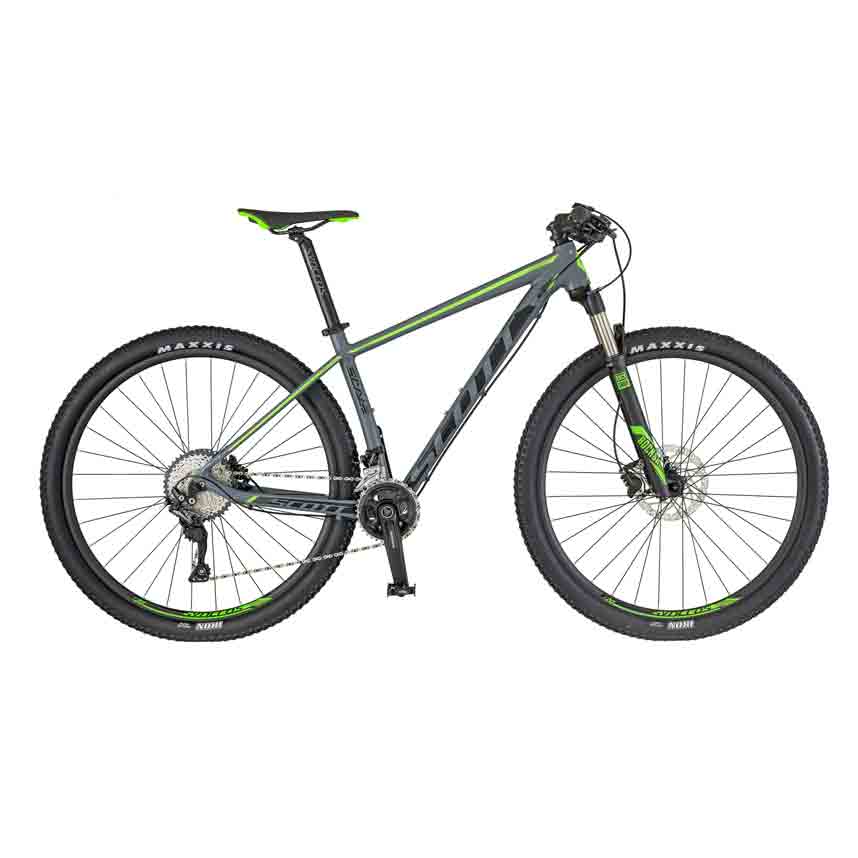

The SCOTT Scale 960 comes fully equipped with a Rock Shox fork, along with Remote Lockout technology to allow for multiple travel settings to adjust to riding conditions.

bike condition 3
CROSS-COUNTRY, MARATHON, HARDTAILS
Please check the Bike Manual Section for more information
FRAME Scale Alloy 6061 Custom Butted Tubing
Tapered HT / BB92 / Bridgeless Seatstays
Internal Cable Routing / replaceable hanger
FORK Rock Shox Recon Silver RL Solo Air
Tapered Steerer / Reb. Adj. / Lockout
100mm travel
REMOTE SYSTEM SCOTT RideLoc Remote
HEADSET Syncros OE Press Fit / Tapered 1.5″ – 1 1/8″
OD 50/61mm / ID 44/55mm
REAR DERAILLEUR Shimano SLX RD-M7000 SGS
Shadow Plus / 22 Speed
FRONT DERAILLEUR Shimano SLX FD-M7025-H
SHIFTERS Shimano SLX SL-M7000-I / Rapidfire Plus
2 way release
BRAKES Shimano M425 Disc
180/F and 160/Rmm SM-RT30 CL Rotor
CRANKSET Shimano FC-MT600-11
36×26 T
BB-SET Shimano BB-MT500-PA / shell 41×89.5mm
HANDLEBAR Syncros T-Bar / Alloy 6061
T shape Flat / 9° / 720mm
H’STEM Syncros 6061 Alloy
oversize 31.8mm / 1 1/8″ / 6° angle
PEDALS Wellgo M-21
SEATPOST Syncros / 31.6x400mm
SEAT Syncros XR2.5
HUB (FRONT) Formula CL51
HUB (REAR) Shimano FH-M3050 CL
CHAIN KMC X11EL
CASSETTE Shimano SLX CS-M7000 / 11-42 T
SPOKES Stainless Black 15G / 1.8mm
RIMS Syncros X-20 / 32H
TIRES Maxxis Ikon / 2.2 / 60TPI
APPROX WEIGHTS IN KG 12.70
APPROX WEIGHTS IN LBS 28
SYSTEM WEIGHT 128 kg
The overall weight includes the bike, the rider, the equipment and possible additional luggage.
